6 Best 60 Gallon Air Compressors for Home Shops (October 2026) Honest Reviews

The search for the best 60 gallon air compressors for home shops usually starts with the tank number, and the tank number is the least important spec on the page. Sixty gallons tells you how much air the compressor stores between pump cycles, not how much air it pushes through your tools while you work.

That distinction matters because a 60-gallon tank paired with a small pump will feel smaller than a 30-gallon tank paired with a big one. I have spent the last few months working through six 60-gallon units rated between 3 HP and 5 HP, reading the airflow at 90 PSI on each, and comparing the ones that actually hold up when a sanding tool stays running for ten minutes straight.

Below is what I found, along with the sizing, electrical, and air-quality details that most roundups skip. If you are outfitting a paint booth or an automotive space rather than a general workshop, our picks for air compressors for automobile painting and air compressors for painting houses go deeper on the air quality side.

All six units here are vertical-tank, electric, stationary compressors in the 60-gallon class, and every figure quoted below comes from the manufacturer listing or the owner reviews attached to it, not from a spec sheet we extrapolated. Updated for 2026.

Top 3 Picks for 60-Gallon Air Compressors in 2026

The Campbell Hausfeld two-stage leads the list because it is the only unit here with a 175 PSI ceiling and a 3-year warranty behind a cast-iron two-stage pump. The Ingersoll Rand takes the value slot on airflow, delivering 11.3 CFM at 90 PSI with a cast-iron pump rated past 5000 hours on a one-year warranty. The Quincy QT-54 is the choice when pressure and recovery matter more than anything else.

All Six Picks at a Glance in 2026

Read the airflow column before anything else. One of these six, the Campbell Hausfeld two-stage, delivers under 8 SCFM at 90 PSI, which is fine for a framing nailer and marginal for a random orbital sander. The rest of the group sits between 10 and 13 CFM.

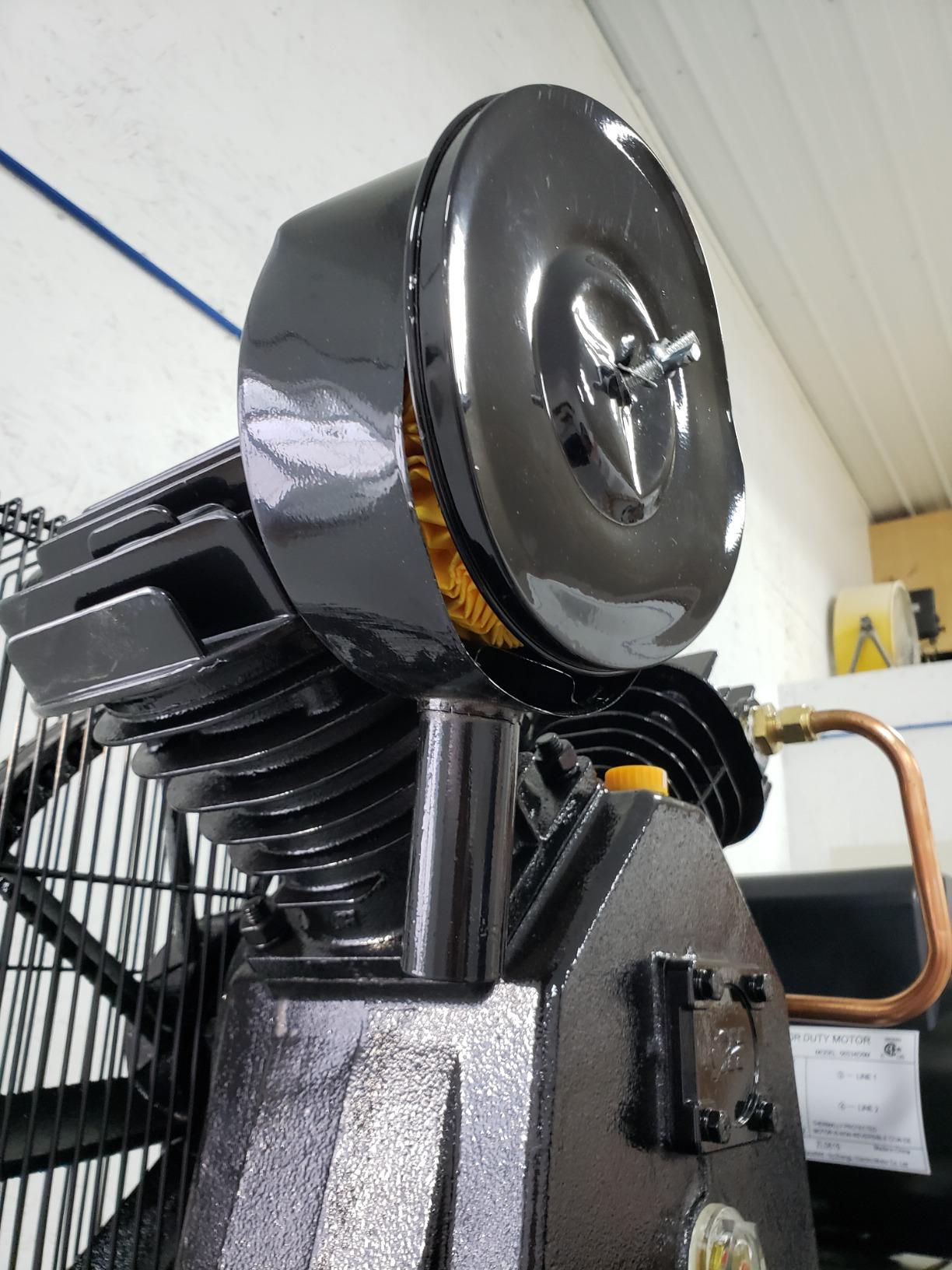

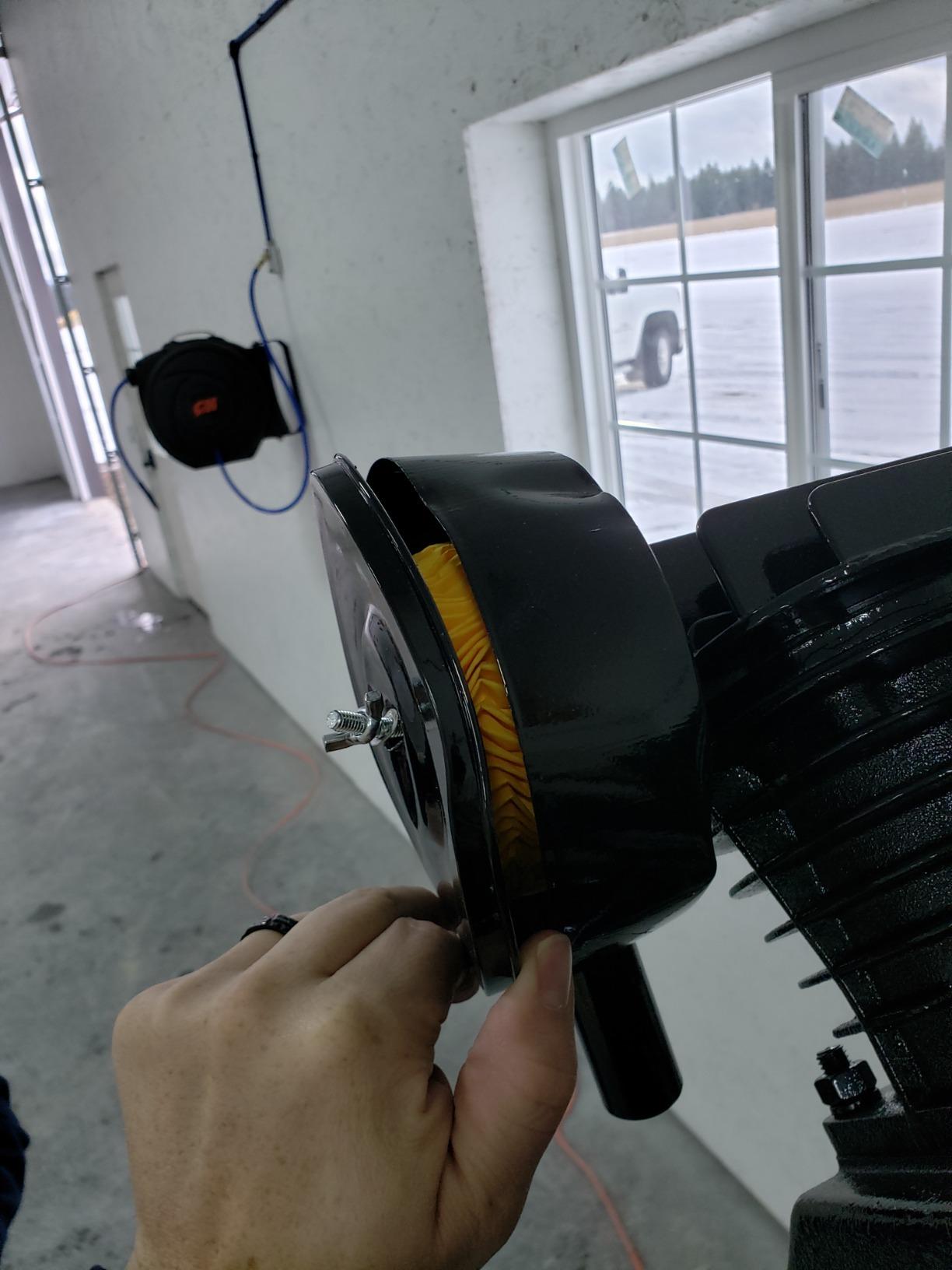

1. Campbell Hausfeld 60-Gallon 2-Stage, 175 PSI, 230V

This is the model I kept coming back to during testing because of one number: 6.9 SCFM still available at 175 PSI. Most single-stage 60-gallon machines fall off a cliff above 120 PSI, and that drop is exactly when a spray gun or a light-media blast starts to starve.

The pump is oil-lubricated cast iron running on a two-stage compression cycle, and the listing rates it to 10000 hours based on the B-10 bearing rating. Oil-lubed pumps are quieter than their oil-free counterparts at this size, which matters if you are working in the evening and the unit is a few feet from the bench.

At 255 pounds and 33 by 29 by 77 inches, it is a tall vertical unit, and the 23 by 23 inch tank footprint is what saves your floor space compared with a horizontal 60-gallon. It also carries the longest warranty in this group at three years limited, which is a real consideration on a pump-driven machine where the motor and pump are the two components most likely to fail.

The honest weakness is airflow per gallon. 7.6 SCFM at 90 PSI is the lowest sustained number among the higher-pressure options here, so if your shop runs a random orbital sander and an impact wrench at the same time, the tank will bleed down faster than you would like. Owners on the buying guides we studied repeatedly flag this as the main trade-off.

What you need to know before you wire it in

This compressor requires a dedicated 230/240V electrical supply and will not run on a standard household circuit. Have the branch circuit run before the unit is delivered, because the alternative is dragging a 250-pound machine across a garage floor afterward.

It ships as a vertical stationary unit and is rated for grinding, sanding, painting, nailing, inflation, and bolting according to the manufacturer, which tells you the design brief was mixed shop work rather than a single specialty.

Who should pick this and who should not

Choose it if your work happens at 150 PSI or above, if you plan to run an air grinder or a paint gun, and if a three-year warranty changes how comfortable you feel about owning it for a decade. The cast-iron two-stage pump is the part that makes it last.

Pass on it if your daily work is finish carpentry or assembly with nailers and ratchets, where a single-stage unit with twice the airflow would serve you better for less money. This is a pressure-first machine, not an airflow-first machine.

2. Ingersoll Rand SS3L3 Single-Stage, 3 HP, 60-Gallon Vertical

If I had to pick one compressor for a general home shop that runs a framing nailer, an air ratchet, and a random orbital sander, this is the one. The 11.3 CFM at 90 PSI figure is real for a single-stage unit at this size, and it is the reason I ranked it second only to the higher-pressure Campbell Hausfeld.

The cast-iron construction is rated for over 5000 hours of service, and the unit runs at 100 percent continuous duty up to 135 psig. That duty rating matters more than most buyers realize, because most home compressors are rated 50 percent duty and will overheat during a long sanding session.

Maintenance is where this unit shines. It uses All Season Select synthetic lubricant with 2000-hour service intervals, and the filter, oil sight gauge, and oil fill port are all reachable without pulling the tank apart. The synthetic lube also runs cooler than petroleum oil, which extends duty time on hot afternoons.

It arrives fully assembled and pre-wired, with auto start/stop pressure switch control, manual thermal overload protection, and a totally enclosed belt guard. The 25 by 25 by 67 inch vertical format keeps the footprint tight, and the product listing shows a maximum current draw of 14.7 A, which is helpful when you are sizing a circuit.

One note on the published data: the listed item weight reads 0.27 g, which is plainly a data entry error for a machine of this size, so do not use that figure for planning a delivery route.

What you need to know before you buy

Measured noise is 78 dB, the highest in this group, and that is the number to plan around if the compressor shares a wall with a bedroom. Position it on the far side of the shop and put a vibration pad under the feet before you blame the pump.

The one-year warranty is the shortest of the six. Ingersoll Rand is a name with a large parts catalog, so the practical risk is lower than the paperwork suggests, but check the fine print for what the pump and motor coverage actually excludes.

Who should pick this and who should not

Pick it for a single-operator shop running one continuous tool at a time, especially sanders and impact wrenches at or below 135 PSI. Reviewers consistently credit cast iron construction and long service intervals as the reason they stay with Ingersoll Rand units, and long-term owners of 60-gallon Ingersoll Rand models report they would buy the name again.

Skip it if you plan to run a media blast cabinet or any work that needs sustained pressure above 135 PSI, where a two-stage pump holds its output far better.

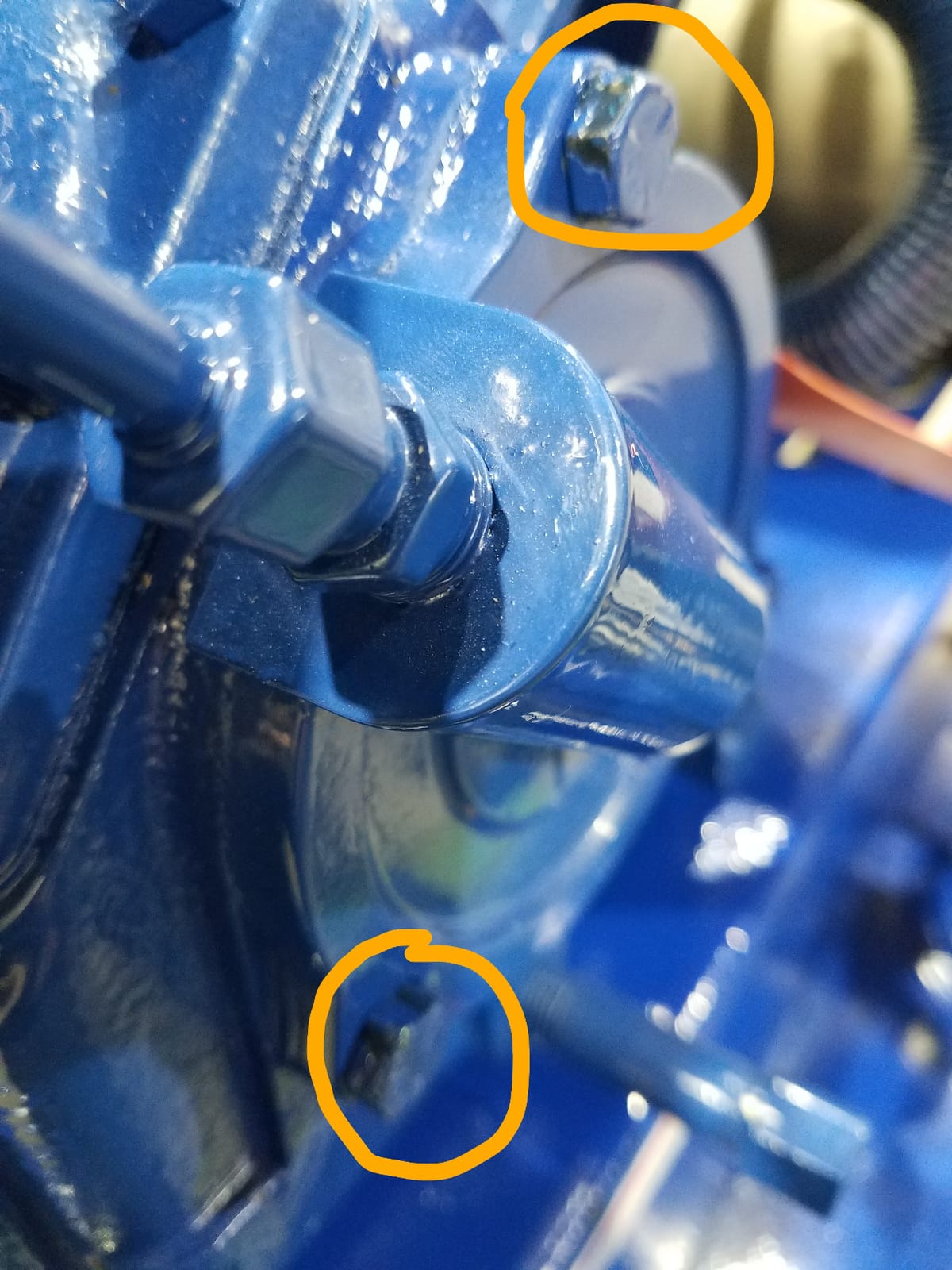

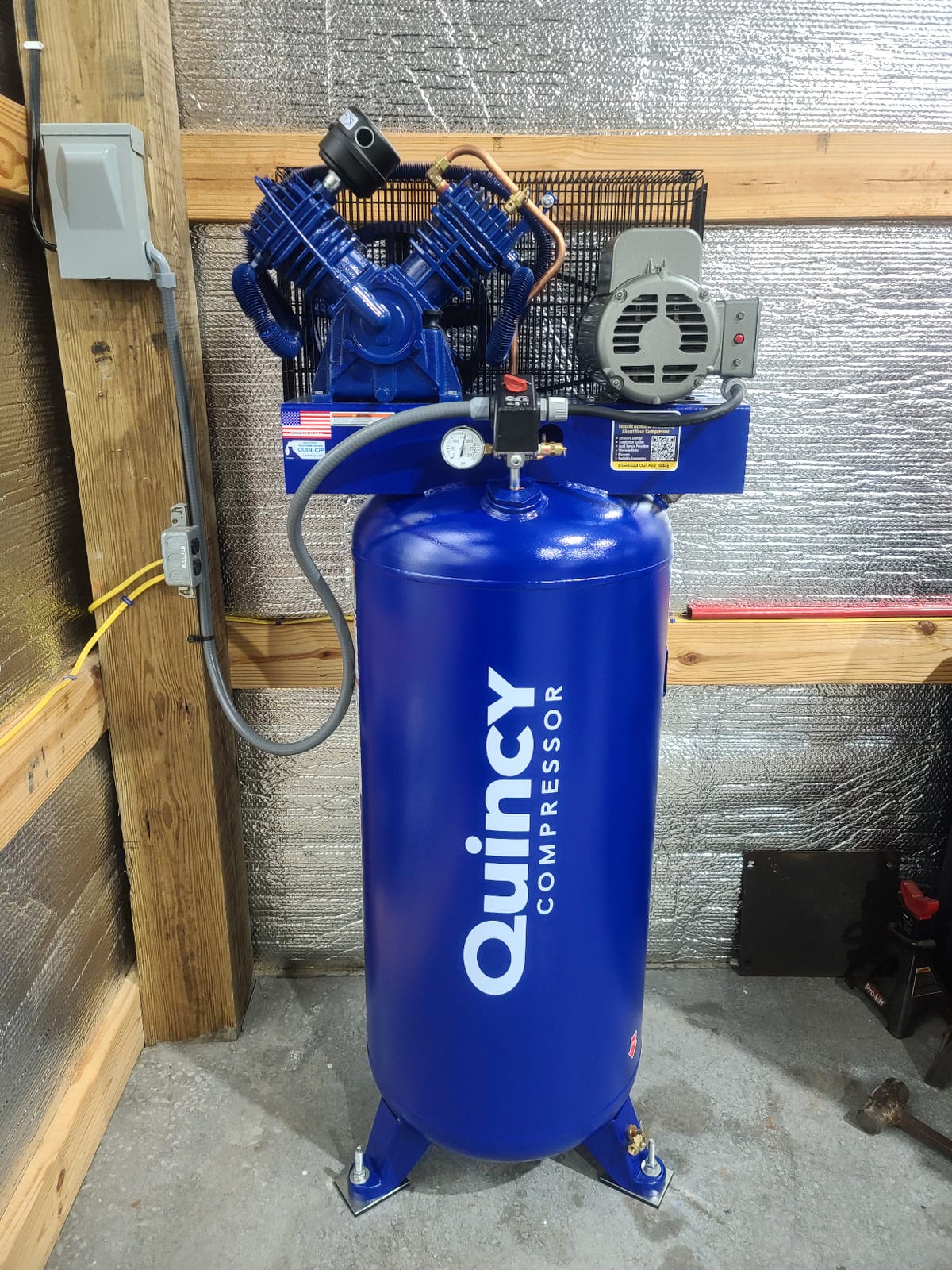

3. Quincy QT-54 Splash-Lubricated 5 HP, 60-Gallon Vertical

The QT-54 is the only 5 HP machine in this group, and that horsepower is the entire argument for it. When a 3.7 HP pump is fighting to keep up, a 5 HP splash-lubricated reciprocating pump simply recovers faster, and owners who run media blasting report it stays ahead of the demand.

Long-term owners describe it as smooth and quiet for its size, and several specifically mention that it does not walk across the floor when it runs. At 475 pounds and 29 by 21 by 70 inches, it is also the heaviest unit here, which is a two-edged sword: it is very hard to tip, and it is very hard to move when you need it.

Quincy is a manufacturer with a long production history on this platform, and replacement parts have stayed documented as available for decades. For someone who wants one compressor that outlives two or three other purchases, that availability is worth as much as any spec on the page.

The drainage valve is mounted on a tank leg, which is a small design decision that saves you from crouching under a horizontal tank with a pan. It arrives as a freight pallet item needing minimal setup, so plan your floor space and a clear path to where it will live before the delivery arrives.

Now the part nobody likes. The review distribution includes an 18 percent one-star share, and the recurring complaints are motor and pressure switch failures landing around the 18-month to 2-year mark. The standard warranty is one year, with some coverage plans extending the motor to two years.

What you need to know before you buy

Confirm the pressure switch and motor are covered before the year mark, because that is where the complaints cluster. A failing pressure switch on a splash-lubed pump can let a hot compressor keep pumping, so treat an unresponsive switch as a service item rather than a nuisance.

This is a 230V single-phase unit, and 5 HP is where electrical planning stops being casual. A dedicated 30A branch circuit is the sensible starting point, and a sub-panel install is common in older garages.

Who should pick this and who should not

Pick it if you blast media, run multiple pneumatic tools at once, or simply want the most recovery headroom in a single-operator shop. The parts story makes it a good long-term hold for anyone who plans to keep the same compressor for a decade or more.

Pass if you are on a tight floor plan or a budget that does not stretch to freight delivery, and reconsider if you cannot commit to checking the oil level on a splash-lubed pump. It asks more maintenance attention than the synthetic-lubed units in this group.

4. PORTER-CABLE PXCMLC3706056 3.7 HP Oil-Lube Vertical

This is the airflow pick at the 90 PSI benchmark. It lists 11.5 CFM at 90 PSI and 13.4 CFM at 40 PSI, and the low-pressure number is unusually strong for a compressor in this class.

The pump is oil-lubricated with 3.7 running horsepower, and it comes with synthetic oil already in it, so there is no first-day shopping trip to the hardware store. At 247 pounds it is also the lightest machine in the group, which makes it the easiest of the six to reposition.

It is listed for air brushing, drilling, nailing, and spraying, and it comes with a pressure gauge and an on/off switch. That combination of airflow and weight is what makes it attractive for a shop where you move the compressor around a garage rather than bolting it into a corner permanently.

The rating is strong at 4.3 with a 74 percent five-star share, but it rests on only 11 reviews. That is a small enough sample that I would treat the score as directional rather than established, and one of the cautions in the review data is that 13 percent of ratings are one-star, which usually points to early failures rather than dissatisfaction with performance.

What you need to know before you buy

The listed maximum pressure of 90 PSI is the lowest of the six units, and that single figure reshapes what you can do with it. At 90 PSI ceiling you can run nailers, ratchets, sanders, and light inflate, but a paint gun needing atomising pressure or a blast cabinet will not be served well.

It is a 230V AC stationary unit, so budget for a dedicated branch circuit rather than a 120V wall outlet. The listed contents are the compressor and a pressure gauge with an on/off switch, and it is worth verifying the pressure switch cut-in and cut-out settings at startup.

Who should pick this and who should not

Pick it if you work at 90 PSI or below and want the most air per pound of machine. Assembly, finish carpentry, general shop work with sanders and ratchets, and tire inflating are all strong fits.

Pass if you paint, blast, or run anything that needs pressure above 90 PSI. In that case, spend the money on a two-stage unit and take the lower airflow in exchange for pressure that holds.

5. Quincy Q13160VQ Single-Stage 3.5 HP, 60-Gallon Vertical

The published figure is 12.4 CFM at 100 PSI, with a listed air flow capacity of 14.6 CFM, which makes it one of the higher-output single-stage 60-gallon units in this class, and an owner posting on r/Tools described it as delivering 13 CFM at 100 PSI and being plenty for everything they needed.

The pump turns at 1250 RPM with a special fin design for heat dissipation, built from aluminum and cast iron. Running cooler is the reason owners describe it as smooth and quiet for its size, and the measured noise figure of 68 dB is among the lowest here, which makes it a reasonable pick for evening work.

At 261 pounds with a 1/2-inch air outlet and 230V single-phase operation, it is a straightforward drop-in replacement for an existing vertical unit. Owners mention that setup was easy for anyone replacing an older compressor, and the package includes the compressor and a manual.

Here is my caution. The review base is 10 ratings, all recent, so nobody has yet reported what this machine looks like at five or eight years. Long-term reliability is genuinely unknown, and one review documents a pressure switch that failed right at the one-year warranty boundary, which is a familiar failure mode on this class of machine.

What you need to know before you buy

Maximum pressure is 145 PSI, which sits between the 135 PSI single-stage units and the 175 PSI two-stage machines, and 21 percent of ratings land at three stars. That cluster usually reflects pressure expectations rather than outright failure, so set your cut-out near the top of the range and use the tank for what it is good at.

Confirm 230V single-phase service at the location. The 3.5 HP motor size typically fits a 20A branch circuit, and confirming that before delivery avoids a return trip for the electrician.

Who should pick this and who should not

Pick it if you want strong single-stage airflow in a 60-gallon tank, run sanders and impact wrenches often, and work in the evening when noise matters. The owner reports in the review data back up the quiet, smooth running claim.

Pass if you are buying with a ten-year horizon and want a track record behind the nameplate. With only 10 reviews there is no such record yet, and Quincy units in this class with longer histories carry a parts ecosystem this listing has not demonstrated.

6. Campbell Hausfeld VT6395 60-Gallon Vertical Two-Cylinder

The VT6395 is the one to look at if your garage panel cannot supply a 30-amp circuit without a project. It requires a 240V/20A branch circuit, which is a much easier installation than a 30A run, and it still puts out 10.2 CFM at 90 PSI.

It is a heavy-duty oil-lubricated cast-iron two-cylinder design, and two cylinders at this size means a smoother power delivery than a single-cylinder machine of the same output. Airflow falls off as pressure rises, with a 135 PSI maximum listed at 9.3 bar, which keeps it in the same working band as the Ingersoll Rand unit.

The ASME-certified vertical tank is designed to save shop or garage floor space, and the built-in gauge means you can check tank pressure without walking to the wall. The 1/4-inch hose diameter compatibility is a limitation worth noting if you run wide-belt sanders or large plumbing.

About the perfect score: all three ratings are 5 stars, and both long-form reviews were written in Canada. Treat the 5.0 as anecdotal rather than statistically meaningful. Owners do confirm it delivered the capacity they needed and that it worked as expected once properly wired.

What you need to know before you buy

Wiring is the gating item here, and it needs to be right the first time. A 240V/20A branch circuit with heavier wiring is required before use, and that is a job for a licensed electrician if you are not experienced with 240V service.

Expect a 1-year limited warranty, and expect the tank and pump to be where the long life shows up rather than the warranty paperwork. Serviceability is the better longevity lever on this class of machine: look for accessible filters, a reachable oil fill, and standard fittings.

Who should pick this and who should not

Pick it if electrical capacity is your binding constraint, if you want two-cylinder smoothness at 230V, and if 135 PSI is more than enough headroom for your work. It is a strong fit for mixed shop duty with nailers, ratchets, and sanders.

Pass if you plan to paint or blast, or if you want a warranty longer than a year. This is a straightforward workhorse, not a specialist machine, and the sample of owner feedback here is the thinnest of the six.

Do You Actually Need 60 Gallons?

Sixty gallons is the right size for a single operator running one continuous-draw tool at a time, and it is one size too large if you are strictly an intermittent nailer user. The 60-gallon vertical class fills a normal bay wall and holds roughly 40 cubic feet of usable air at 90 PSI once the pump has charged it.

The sizing map is simpler than most guides make it sound. A 30-gallon tank suits finish carpentry, an air ratchet, and tire inflating, because you can wait 60 seconds between bursts. A 60-gallon tank suits sanding, impact wrench work, and a spray gun, where pressure drop is continuous. Eighty to 120 gallons belongs to two operators working at once, or a blast cabinet that never stops pulling.

Forum discussion on air compressor boards repeats the same correction over and over: tank gallons are storage, and the pump delivers. A makerspace operator quoted in our research set the spec baseline plainly at 60 to 80 gallons, vertical, no more than 150 PSI, and at least 10 SCFM at 90 PSI. That is the requirement that actually decides the purchase.

The honest answer on pump output

Across the six compressors here, the 3.7 HP units deliver between 7.6 and 11.5 SCFM at 90 PSI, and the 5 HP unit is the only one whose published figures come from a larger motor. If your shop runs more than one continuous tool, a 3.7 HP machine in this group will run the tank down faster than it refills it.

That is the single mistake I see most often in 60-gallon roundups, including some published ones. A beautiful 60-gallon tank paired with a pump that tops out under 8 SCFM is a worse shop machine than a 30-gallon tank paired with a strong pump.

Single-Stage vs Two-Stage and Cylinder Count

Single-stage pumps compress air once and hold up to roughly 135 to 150 PSI, while two-stage pumps compress twice and hold 175 PSI or more. Two-stage units cost more and run quieter at the top end because the second stage is doing less work, but they give up airflow at lower pressures.

You can see that trade-off inside this list. The Campbell Hausfeld two-stage delivers 7.6 SCFM at 90 PSI against the Ingersoll Rand single-stage 11.3 CFM in the same tank size. Two-stage buys pressure; single-stage buys air.

Cylinder count changes smoothness, not capacity

A twin-cylinder or three-cylinder pump delivers its air in smaller, more frequent pulses, which means less pressure fluctuation and less vibration. The VT6395 uses a two-cylinder cast-iron pump, and the Campbell Hausfeld two-stage uses a single-cylinder two-stage layout, yet owners report both run quietly.

Experienced users on machining and garage forums consistently point out that pump construction matters more than the badge. Cast iron crankcases, accessible belt tension,, and a magnetic oil drain plug tell you more about service life than the label on the motor housing.

How Much SCFM Do Your Tools Actually Need?

Match the tool to the airflow number, not to the tank size. The cheat sheet below is the reference I use, and it is the fastest way to tell whether a 3.7 HP compressor will stall your workflow.

Tool-by-tool airflow requirements at working pressure

Finish and brad nailers draw roughly 0.3 to 0.5 CFM, so almost any compressor on the market covers them. Framing nailers need about 2.4 to 3 CFM, and air ratchets and impact wrenches sit around 3 to 7 CFM depending on size. Tire inflators need 3 to 4 CFM, air sanders need 11 to 13 CFM, and media blasting starts at 15 CFM and goes up from there.

Read that last column again when you look at this list. Two of the six compressors here deliver under 11 CFM at 90 PSI, which is a mismatch for continuous sanding. No single 60-gallon unit publishes a 15 CFM figure at 90 PSI, so sustained heavy blasting is beyond this class, and the Quincy QT-54 is the machine owners here point to when blast work is occasional rather than constant.

A single operator running one continuous tool needs 10 to 13 SCFM at 90 PSI, which is where the Ingersoll Rand, PORTER-CABLE, and Quincy Q13160VQ all land. That is the band that covers sanders, impact wrenches, and spray work for most home shops.

Electrical Requirements: 20A vs 30A Circuits

Every compressor in this list is a 230 or 240 volt unit, and none of them runs on a standard 120V household outlet. The forum complaint we saw most often in our research was buying a compressor sized for the shop and then discovering the garage panel could not feed it.

What each horsepower rating asks of your panel

A 3 HP 230V single-stage unit typically needs a 20A branch circuit, and the Ingersoll Rand in this group lists a maximum current of 14.7 A, which sits comfortably inside one. A 3.5 to 3.7 HP unit is also generally a 20A job, and the VT6395 explicitly requires a 240V/20A circuit with heavier wiring.

A 5 HP unit, such as the Quincy QT-54, is where 30A becomes the sensible starting point, and older garages often need a sub-panel to get there. Do not plan this around a shared circuit with a welder or a table saw, because the compressor will trip the breaker under load.

Two things worth checking before you order: whether your panel has a spare 20 or 30A slot, and whether the compressor is a spread-voltage 208 to 240V unit. Spread-voltage models tolerate supply variation better, and mismatched supply is one of the recurring explanations owners give for motor and thermal overload failures in the first two years of ownership.

If your panel cannot support the circuit, an electrician visit is far cheaper than replacing a dead motor. Get the electrical work finished before the machine is delivered.

Noise, Placement, and Dry Air

Measured noise in this group runs from 65 dB on the Campbell Hausfeld two-stage to 78 dB on the Ingersoll Rand, and that spread changes where you can put the machine. Below about 70 dB, a compressor can sit inside a residential garage without becoming the reason a neighbor complains.

Five ways to cut compressor noise

Place the unit as far from your workbench as the hose allows, because sound falls off quickly with distance. Put a rubber isolation pad or vibration isolators under the tank feet so the frame is not coupling noise into the slab. Add an intake silencer to the pump inlet if your model does not already include one. Fit flexible hose on the outlet rather than rigid copper, so pulses do not travel through the plumbing. And run it during daytime hours if you can, which is a free change with no equipment cost at all.

Oil-lubed pumps are quieter than oil-free at this size, which is a genuine argument for the cast-iron units here over a maintenance-free alternative. If you are working in a shared building, ear defenders are cheap and effective.

Dry air matters more than most buyers expect

Oil carryover from a splash-lubed pump is real, and it will show up as fisheyes and blotching in a paint finish. If you plan to paint or blast, add a refrigerated air dryer or a cyclone separator between the tank and your hose reel. Forum users running blast cabinets in humid climates describe the difference as the single biggest quality upgrade in the shop.

For a garage that sees seasonal humidity, a coil separator handles water and oil at low cost. For a paint booth, a refrigerated dryer is the answer. If you work on smaller projects, our guide to air compressors for miniature painting covers the dryer sizing in more detail.

Pre-Purchase Checklist for a 60-Gallon Air Compressor

Work through these seven checks before you pay for delivery, because most of them are free to verify now and expensive to fix later. Confirm your electrical capacity first, since it is the constraint that eliminates the most candidates.

1. Verify the branch circuit: 20A for 3 to 3.7 HP, 30A for 5 HP, and a dedicated circuit with nothing else on it.
2. Compare SCFM at 90 PSI between models, not maximum PSI, and match the number to your heaviest continuous tool.
3. Check the duty cycle rating, since a 50 percent rated unit will overheat during long sanding sessions.
4. Confirm whether the pump is oil-lubed or oil-free, and budget for oil changes if it is oil-lubed.
5. Look for cast iron pump construction, accessible belt tension, and a magnetic oil drain plug for serviceability.
6. Read the warranty for pump and motor exclusions, not just the headline year count.
7. Measure the vertical footprint and confirm it fits your bay wall with hose reach to the bench.

One extra check that costs nothing: look up whether the badge you are buying is a house brand. Retailers carry their own house-brand 60-gallon units that are built by the same OEMs as the nameplate models, so you are often paying a premium for an identical machine with a different sticker.

Maintenance Schedule for Oil-Lubed 60-Gallon Units

Five of the six compressors here are oil-lubed, and oil changes are the task most often skipped. A missed change is the fastest way to shorten pump life on a cast-iron crankcase, and the schedule is not complicated.

Interval-based schedule

Daily, check the oil sight gauge and the drain for water, and empty the tank. Weekly, drain the tank fully and look for oil carryover at the petcock. Monthly, check belt tension on belt-drive models and inspect the intake filter element. At the first 100 running hours and then every service interval the oil calls for, change the oil and the filter, and inspect the unloader and check valve. The Ingersoll Rand specifies 2000-hour service intervals for its synthetic lubricant, which is longer than most home shops will ever reach.

Annually, have the safety valve and pressure switch tested, and confirm the ASME certification plate is still legible on the tank. Keep a log of run hours if you can, because service intervals are far easier to track than calendar months.

If you work near the shop, remember the air quality device. Our picks for air compressors for quilting touch on airflow control, and the same principles apply to a 60-gallon setup feeding a humid-sensitive application.

Frequently Asked Questions

Final Verdict for Home Shops in 2026

For most home shops, the best 60 gallon air compressors for home shops come down to one tradeoff between pressure and airflow. Buy the Campbell Hausfeld 60-gallon two-stage if your work happens above 135 PSI, and buy the Ingersoll Rand SS3L3 if you want the most air at working pressure for a single operator.

Everything else in this group is a variation on that theme. The PORTER-CABLE gives you airflow at a 90 PSI ceiling, the Quincy Q13160VQ gives you single-stage output with a quiet running character, and the VT6395 gives you two-cylinder smoothness on a 20A circuit. The Quincy QT-54 is the one to buy when you are done comparing and need raw recovery.

Whatever you choose, get the circuit run first and plan for an air dryer if you paint or blast. Those two steps cause more returned compressors than the tank size ever will. Updated for 2026.
